Sonnet Morpheus

Sonnet Morpheus







Pure & Simple Digital to Analog conversion with Volume control

What more can you do after launching one of the best DACs available today?

The idea of having a decent volume control to prevent a analog Pre-Amplifier could improve performance dramatically.

However, we also know that the way of introducing such device in the signal chain can also have a negative effect.

Experiments were made and as result the best sound was coming directly from our new fully balanced dac modules.

Especially in case of R2R ladder DACs it is quite easy to change the output voltage of the DAC by changing its reference voltage .

The SDA-2, a new generation DAC module was designed to get the best regulation possible.

The result of this process is an extremely high linearity, right down to -140 dB, which gives our products a realistic 24 bit dynamic range. It is musical, honors the Non-oversampling principle and simultaneously incorporating the technological progress that has been made over the years. Digital to Analog Conversion with lossless volume control.

The Sonnet range will gives you more weight, body, tonal richness, and a more natural sense of the space of the recording. Or to put it more plainly, it fleshes out your music more! This new range does a wonderful job of presenting even the most complex music in a natural and inviting manner with every last ounce of nuance in tact.

There’s no artificial sounding edge, no sense of a flat cutout image, basically none of digital’s nastier stuff. In some cases this can also come with a somewhat dark and muddy sound but that is absolutely not the case with the new Sonnet range.It allows you to hear deep into the recording and the recording’s quality.

This is somewhat of a good news/bad news proposition in that you’ll really hear what’s there.Balanced Non oversampling DAC Two SDA-2 dac modules per channel in differential mode

  • Power supply 15VA 110/115V AC 220/230V AC 60/50Hz.
  • Power required max 8 Watts
  • Input 1x optical, 1x coaxial and 1x AES/EBU and USB
  • Output 1x stereo pair single ended 2 Volts RMS
  • Output 1x stereo pair XLR balanced 4 Volts RMS
  • Recommended gain of used power amp in variable gain mode 22 - 26dB!
  • Frequency Response 44.1 kHz sampling 1Hz – 20 khz -2.5 dB
  • Frequency Response 192 kHz sampling 1Hz – 65 kHz – 3dB and 384kHz (USB)
  • Distortion 0.004% THD
  • Channel separation 120dB
  • Noise Floor -155 dB related to 2 Volt RMS
  • Output impedance RCA 100 Ohm, XLR 100 Ohm
  • Sampling rate Optical 44.1 – 96 kHz
  • Sampling rate Coax and AES/EBU: 44.1 -192 kHz
  • Sampling rate USB 44.1 – 384kHz
  • Aluminum six button remote control included.
  • Possible options: MQA module (standard not included)
  • I2S Module can be installed instead of the USB module free of charge.
  • Dimensions 290 x 250 x 60 mm Weight 3.2KG



For MQA or I2S more information can be found here



The I2S module can be installed instead of the USB module.







A new technology is used to make the I2S data format more reliable.

Actually this format was made for internal use and not able to drive long data lines. Sonnet is using a kind of data transport based on the typical impedance of a standard UTP cable. By using this technology it is important that both transmitter and receiver is made for this quite heavy load of 100 Ohms.

As a result lengts of 30 meters between source and receiver can be used without loss and jitter.

The I2S module is dedicated for Sonnet products like for instance our upcoming Hermes. However in some cases by removing four jumpers on top of the module it will act as a high impedance receiver and therefore more flexible to match with other products.

Still Sonnet Digital Audio cannot guarantee the correct behaviour in conjunction with other systems. If you have any doubts about the correct match with our products don't hesitate to contact us. Like the standard USB option our dacs can be ordered including the I2S module .

The MQA module is available as an option and will be recognized as soon the module is installed in its socket.



The module includes MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. ‘MQA’ or ‘MQA Studio’ indicates that the product is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material. ‘MQA Studio’ indicates it is playing an MQA Studio file, which has either been approved in the studio by the artist/producer or has been verified by the copyright owner. Visit mqa.co.uk for more information. MQA and the Sound Wave Device are registered trade marks of MQA Limited.© 2016



https://www.monoandstereo.com/2020/04/sonnet-digital-audio-morpheus-dac-review.html

https://6moons.com/audioreview_articles/sonnet-digital/

https://www.stereo.net.au/news/sonnet-digital-audio-from-the-netherlands-is-now-available-in-australia

https://hifi.nl/artikel//28650/Review-Sonnet-Digital-Audio-Morpheus-DAC-met-de-R2R-ladder-DAC-naar-hogere-sferen.html

https://alpha-audio.net/2020/02/video-review-sonnet-morpheus-dac-pre-amp/?fbclid=IwAR3armttQ0Iwf1i-MhzJMLrIz6arkj5oRik-UqswhYT9c5YJmVlBZFKfB38





Worldwide ship service where the Distributor or Dealer not exist

Free ship cost in Europe for order up to 500€ (except speakers)

Free ship cost Worldwide for order up to 2000€ (except speakers)

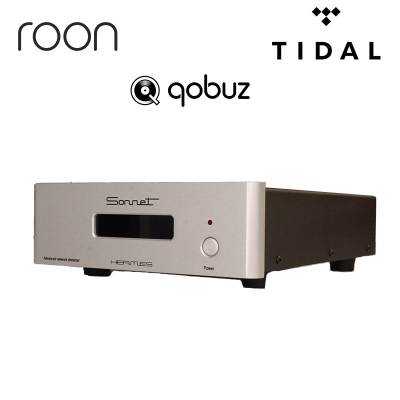

Sonnet Hermes

Sonnet Hermes

At Sonnet Digital Audio we are fanatic about building the best Digital to Analogue converters.

Because of this dedication to perfection we can truly appreciate listening experiences like Roon. Roon looks at your music and finds photos, reviews, lyrics, and concert dates, and makes connections between artists, composers, performers, conductors, and producers.

What you get is a searchable, surfable magazine about your music. And as we believe a Digital to Analogue converter is the heart of your music setup, what else can we do than to build a ROON end point which will allow you to direct your digital music through our device in order to get the most sublime sound available!

The HERMES Digital Bridge is using high quality components and combines it with the user-friendly interface from Roon Labs. Recognized for its perfect timing there hardly is another streamer product available which adds so much detail to music.

The HERMES out of the box comes as a ROON certified digital end point, however because of its architecture it is also capable of running different platforms such as DietPi, PiCorePlayer and Volumio.

This allows for even more possibilities such as playing Qobuz or Logitech Media Server content, or even being discovered in a network using UPnP. At Sonnet Digital Audio we do not believe in “taking prisoners”, hence the choice to provide our clients with an open platform.

Using our HERMES, a client could swap the SD card installed, and open up a whole new world with content from different providers, such as Qobuz. Adding web radio and play it throughout your house, office, wherever you wish to enjoy music, installing Logitech Media Server might be the solution.

As for warranty we are OK with you choosing freedom, however as long as the changes apply to the software.

The HERMES comes with a dedicated I2S output which is based on impedance matching.

This approach makes it possible to use standard UTP cable over lengts of 30 meters without loss or interference. Standard ouputs like AES/EBU, Coax and Toslink are available as well.

The hardware platform in HERMES enables you to stream high res music files from network attached storage, online streaming services through the powerful ROON platform or others, outputting bit perfect audio direct to your DAC.

The HERMES By Sonnet Digital Audio comes with all the connections an audiophile can wish for, and when hooking it up to your network it is a plug and play device. LAN (local area network) input: Connect an UTP cable with your local network.

The Hermes is made as a Roon end point and will only work in conjunction with a digital to analog converter.

The Hermes expects a working Roon music server on the same local network.

Coaxial Output: A 75 Ohm coaxial cable should be used to connect the Hermes to other digital audio equipment like a dac for instance. The coaxial output has a galvanic isolation and can handle a maximum sample rates up to192 kHz. AES/EBU

digital output: When using the AES /EBU digital output a special 110 Ohms XLR cable should be used to connect the Hermes to other digital audio equipment. The AES/EBU interface has a galvanic isolation and can handle a maximum sampling rates up to 192 kHz.

Optical output: A standard Toslink cable can be used to connect the Hermes to other digital audio equipment. The max. sampling rate of the Toslink interface is limited to 96kHz.

I2S output: The I2S connection is probably the best way to connect digital audio equipment over short distances without intervention of all kind of interfaces like AES/EBU , Spdif or Toslink. However still I2S is no international standard in terms of ruggedising the format or the connectors used. The I2S standard is optimized as an interconnection between Sonnet products but will work in most cases in conjunction with other gear. If your Sonnet product has the I2S option installed you can use a simple UTP cable.

  • Working principle: Linux based ROON end point using precision clocks
  • Power supply: 10 VA. Power consumption: Standby < 1 Watt. Full operation max 6 Watts
  • Power requirement: 110-230 V AC 60/50Hz
  • Inputs: Lan (local area network) max. 100 Mbps
  • Outputs: 1x optical Toslink, 1x RCA coax, 1x AES/EBU and I2S.
  • Sampling frequency: Optical : 44.1 – 96 kHz sampling.
  • Coaxial: 44.1 – 192 kHz sampling. I2S: 44.1- 192 kHz sampling.
  • Max cable length in case of UTP CAT5e 20 meters.
  • Dimensions: hxwxd: 19x6x25 cm. Weight: 2500 gram.

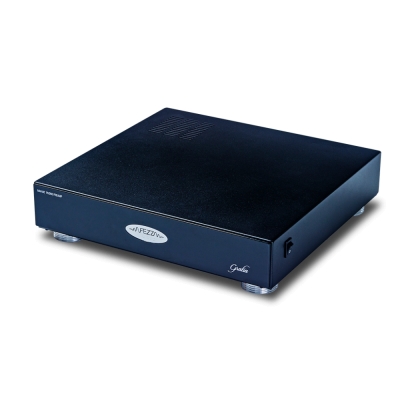

Gratia MM/MC Phono

Gratia MM/MC  Phono

A phono stage designed to work with MM, MC HO and MC cartridges. The amplification section is based on the high end operational amplifier - Burson Supreme Sound Opamp V5i. The heart of the extended power path is the Supreme Audio Toroidy.pl transformer. Gratia MM/MC with its design, refers to the current style of Fezz Audio. Undeniable advantage of Gratia is universality. Thanks to the wide settings varietes, it can be a perfect match with a low output signal level MC cartridges.



Specification:


- Cadridge type: MM/MC HO/MC , RIAA curve EQ
- inputs / outputs: 2/1
- Power consumption 12W
- Operation amplifier type: Burson Audio Supreme V5i
AC Supply: Stabilized + toroidal Supreme Audio Grade transformer by Toroidy.pl - Subsonic filter: yes
- Stereo/Mono mode switch: yes
- Gain MM/MC LOW: 50dB / 60dB
- THDdistortion(20Hz-20kHz):<0.005%
- Crosstalk MM/MC: >95dB / >96dB
- Signal/noise ratio MM/MC: >92dB / >90dB

- Input impedance MM/MC: 47kΩ / 50-1kΩ
- Dimensions (width x depth x height)/weight: 340 x 320 x 80 mm / 4,2 kg



- Available colour schemes: black, white, burgundy, red

Buy Now

Gaia Mini MM Phono

Gaia Mini MM  Phono

High fidelity phono stage, designed to support MM and MC HO cartridges. The chassis dimesions has been reduced compared to the standard version of Fezz Audio Gaia. The high-quality components as the FET OPA 2132 Burr-Brown operational amplifier and Nichicon Fine Gold capacitors, guarantee excellent dynamics at level of more expensive constructions.





Model: Gaia Mini MM

  • Typ : Phono Stage

  • Cadridge type : MM/MC HO , RIAA curve EQ

  • Operation amplifier type: OPA 2132 Burr-Brown

  • AC Supply: Stabilized + EI standard power transformer

  • Gain : 53 dB

  • THD distortion (20Hz-20kHz) : < 0,008%

  • Crosstalk : >91dB

  • Signal/noise ratio MM: >90dB

  • Input impedance MM: 47kΩ

  • Power consumption 5W

  • Weight : 1,1 kg

  • Dimensions : 170x160x65mm





- Available colour schemes: black, white, burgundy, red

Buy Now

Canor Audio Phono 1.10

Canor Audio Phono 1.10

Fully tubular gramophone preamplifier for both MM and MC cartridges containing up to nine tubes, including one vacuum diode used to rectify the anode voltage.

Canor Audio CD 2.10 /DA converter

Canor Audio CD 2.10 /DA converter

is a tube CD player with integrated DA converter AK4490.

Canor Audio CD 1.10 /DA converter

Canor Audio CD 1.10 /DA converter

Canor CD 1.10 is our new tube CD player / DA converter with support for high-quality audio playback up to 24bit / 192kHz. It belongs to the new revolutionary generation of CANOR products.
